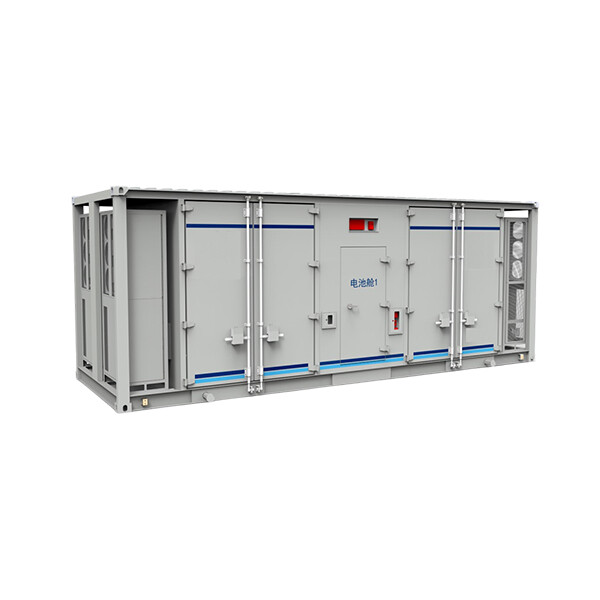

2.6MW- 3.3MW
- 5MW-I
- 5MW-II
| Items | 2.6MW | 3.3MW | 5MW-I | 5MW-II |
| Specifications | ENNP-ESS-2656 | ENNP-ESS-3355 | ENNP-ESS-5015-I | ENNP-ESS-5015-II |
| Nominal Capacity | 2655.744kWh | 3354.624kWh | 5015KWh | 5015KWh |
| Nominal Voltage | 1164.8V | 1331.2V | 1331.2V | 1331.2V |
| Operating Voltage Range | 1019.2~1328.6V | 1164.8~1497.6V | 1164.8~1497.6V | 1164.8~1497.6V |
| Battery Management System | Passive Balancing | Passive Balancing | Passive Balancing | Passive Balancing |
| Battery Type | LFP-Lithium Iron Phosphate | LFP- Lithium Iron Phosphate | LFP-Lithium Iron Phosphate | LFP-Lithium Iron Phosphate |
| Battery Voltage Range | 2.5~3.65V | 2.5~3.65V | 2.5~3.65V | 2.5~3.65V |
| Standard Charge Rate | 1C, 25±2℃ | 0.5C, 25±2℃ | 0.5C, 25±2℃ | 0.5C, 25±2℃ |
| Cooling Method | Liquid Cooling | Liquid Cooling | Liquid Cooling | Liquid Cooling |
| Battery Pack Assembly Method | 1P52S | 1P52S | 1P52S | 1P104S |
| Battery Cluster Connection Method | 1P364S | 1P416S | 1P416S | 1P416S |
| Battery Cluster Withstand Voltage | Leakage Current <1mA (Test Time 60s) | Leakage Current <1mA (Test Time 60s) | Leakage Current <1mA (Test Time 60s) | Leakage Current <10mA (Test Time 60s) |
| Battery Cluster Insulation | Measurement Value ≥500MΩ (Test Time 60s) | Measurement Value ≥500MΩ (Test Time 60s) | Measurement Value ≥500MΩ (Test Time 60s) | Measurement Value ≥500MΩ (Test Time 60s) |
| Altitude | ≤2000m | ≤2000m | ≤2000m | ≤2000m |
| Operating Temperature | -20～60℃ | -20～60℃ | -20～60℃ | -20～60℃ |
| Relative Humidity | ≤95%RH, No Condensation | ≤95%RH, No Condensation | ≤95%RH, No Condensation | ≤95%RH, No Condensation |
| Recommended SOC Usage Range | 5%～95% | 5%～95% | 5%～95% | 5%～95% |
| Fire Fighting System | Micro-Particle Detection + Perfluorohexanone (Internal Detection + Cluster Fire Fighting + Total Flooding) + Water Fire Fighting | Perfluorohexane (Internal Detection + Cluster-level Firefighting + Total Flooding) + Water Firefighting | Perfluorohexanone (Internal Detection + Cluster Firefighting + Total Flooding) + Water Firefighting | Perfluorohexane (Internal Detection + Cluster Level Firefighting + Total Flooding) + Water Firefighting |
| Running Temperature | 25±2℃ | 25±2℃ | 25±2℃ | 25±2℃ |
| Battery Compartment Protection Level | IP55 | IP55 | IP55 | IP55 |
| Communication Method | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 |
| Size (L*W*H) | 7620*2600*2896mm | 6058mm*2600mm*2896mm | 6858mm*2800mm*2896mm | 6058mm*2438mm*3000mm |
| Weight | 36t | 36t | 45t | 43t |
| Cell Model | 285Ah | 280Ah | 314Ah | 314Ah |
| Cell Cycle Life | ≥5000 Cycles, @25℃, DOD90%, EOL80% | ≥6000 Cycles, @25℃, DOD95%, EOL80% | ≥6000 Cycles, @25℃, DOD95%, EOL80% | ≥6000 Cycles, @25℃, DOD95%, EOL80% |
