418kWh- 372kWh
- 261kWh

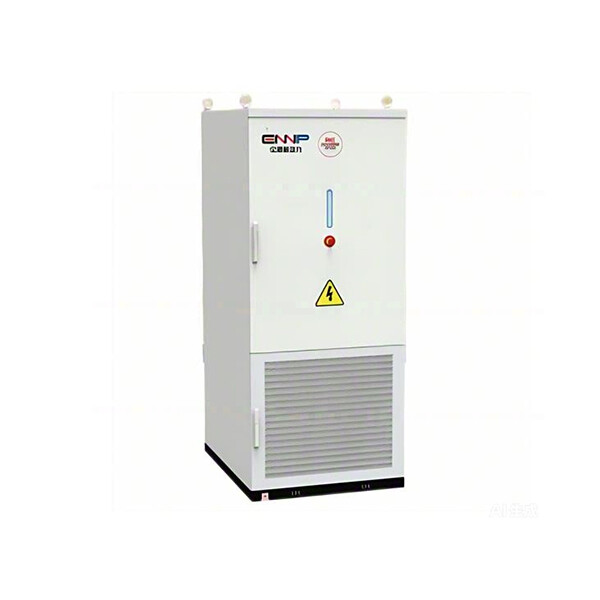

- 233kWh
- 215kWh
- 200kWh
- 100kWh
| Items | 100kWh | 200kWh | 215kWh | 233kWh | 261kWh | 372kWh | 418kWh |
| Specification | ENNP-BES-100 | ENNP-BES-200 | ENNP-BES-215 | ENNP-BES-233 | ENNP-BES-261 | ENNP-BES-372 | ENNP-BES-418 |
| Nominal Capacity | 100kWh | 200kWh | 215kWh | 233kWh | 261kWh | 372kWh | 418kWh |
| Nominal Voltage | 358.4V | 716.8V | 768V | 832V | 832V | 1331.2V | 1331.2V |
| Operating Voltage Range | 313.6V~408.8V | 627.2V~817.6V | 627.2V~817.6V | 728V~949V | 650V~949V | 1040V~1518.4V | 1040V~1518.4V |
| Battery Management System | Passive Balancing | Passive Balancing | Passive Balancing | Passive Balancing | Passive Balancing | Passive Balancing | Passive Balancing |
| Battery Type | LFP-280 | LFP-280 | LFP-280 | LFP-280 | LFP-314 | LFP-280 | LFP-314 |
| Battery Voltage Range | 2.8~3.65V | 2.8~3.65V | 2.8~3.65V | 2.8~3.65V | 2.8~3.65V | 2.8~3.65V | 2.8~3.65V |
| Standard Charge Rate | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C | 0.5C |
| Cooling Method | Air Cooling | Air Cooling | Liquid Cooling | Liquid Cooling | Liquid Cooling | Liquid Cooling | Liquid Cooling |
| Battery Pack Grouping Method | 1P16S | 1P16S | 1P48S | 1P52S | 1P52S | 1P52S | 1P52S |
| Battery Cluster Connection Method | 1P112S | 1P224S | 1P240S | 1P260S | 1P260S | 1P416S | 1P416S |
| Protection Level | IP54 | IP54 | IP55 | IP55 | IP55 | IP55 | IP55 |
| Noise | <80dB (at 1m from the device) | <80dB (at 1m from the device) | <80dB (at 1m from the device) | <80dB (at 1m from the device) | <80dB (at 1 meter from the device) | <80dB (at 1m from the device) | <80dB (at 1 meter from the device) |
| Operating Altitude | ≤2000m | ≤2000m | ≤2000m | ≤2000m | ≤2000m | ≤2000m | ≤2000m |
| Operating Temperature | ﹣20~60℃ | -25 ℃～60℃ | ﹣25 ℃～60℃ | -20～60℃ | -20～60℃ | -20～60℃ | -20～60℃ |
| Relative Humidity | ≤95%RH, no condensation | ≤95%RH, no condensation | ≤95%RH, no condensation | ≤95%RH, no condensation | ≤95%RH, no condensation | ≤95%RH, no condensation | ≤95%RH, no condensation |
| Recommended SOC Usage Range | 5%～100% | 5%～100% | 5%～100% | 5%～100% | 5%～100% | 5%～100% | 5%～100% |
| Fire Fighting System | Perfluorohexane (cluster level detection + cluster level fire fighting) + water fire fighting | Perfluorohexane (cluster level detection + cluster level fire fighting) + water fire fighting | Perfluorohexane (internal detection + cluster-level fire extinguishing) + cluster-level aerosol (optional) + water fire extinguishing | Perfluorohexane (internal detection + cluster-level fire extinguishing) + cluster-level aerosol (optional) + water fire extinguishing | Perfluorohexane (internal detection + cluster-level fire fighting) + cluster-level aerosol (optional) + water fire fighting | Perfluorohexane PACK level fire extinguishing + water fire extinguishing + aerosol | Perfluorohexane (internal detection + cluster-level fire extinguishing) + cluster-level aerosol (optional) + water fire extinguishing |
| Operating Temperature | 25±2℃ | 25±2℃ | 25±2℃ | 25±2℃ | 25±2℃ | 25±2℃ | 25±2℃ |
| Communication Method | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 | LAN/CAN/RS485 |
| Size (L*W*H) | 1300mm*1450mm*2500mm 1300mm*1450mm*1950mm (substation) | 1300mm*1450mm*2500mm | 1400mm*1300mm*2100mm | 1400mm*1300mm*2100mm | 1400mm*1300mm*2250mm (double door) / 1000mm*1300mm*2400mm (single door) | 1400mm*1400mm*2500mm | 1450mm*1450mm*2600mm |
| Weight | 2T | 3T | 3T | 3T | 3T (double door) / 2.8T (single door) | 4T | 4T |
| Cell Circle Life | ≥6000次,@25℃，DOD95%，EOL80% | ≥6000次,@25℃，DOD95%，EOL80% | ≥6000次,@25℃，DOD95%，EOL80% | ≥6000次,@25℃，DOD95%，EOL80% | ≥6000次,@25℃，DOD95%，EOL80% | ≥6000次,@25℃，DOD95%，EOL80% | ≥6000次,@25℃，DOD95%，EOL80% |
